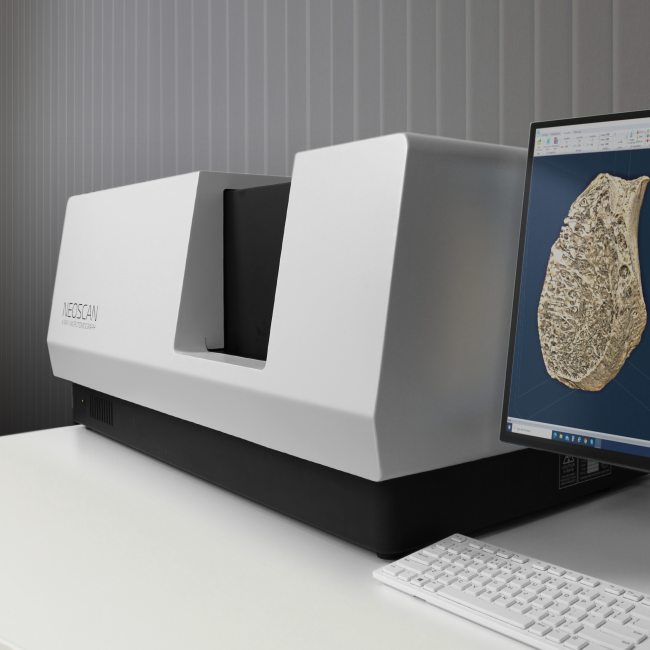

NeoScan N70 Micro-CT scanner with ultimate perfor
| 2.5 um minimal pixel size |
Detects details down to a couple of microns | |
| <4 um low contrast resolution | High resolution for wide application range | |
| 7MP Flatpanel | Fast scanning with more details in every slice | |
| Fits objects up to 100mm diameter and 220mm length | Generous sample size |
Technische Daten
|
GERNERAL |
|
X-RAY SOURCE | ||||
| Pixel size at maximum magnification |
2.5 um |
Type |
maintenance-free, sealed |
|||
| True low-contrast 3D resolution |
< 4 um |
Smallest spot size |
< 5 um |
|||
| Maximum scanning diameter |
100 mm |
Voltage |
20-100 kV |
|||
| Maximum scanning length |
120 mm |
Maximum power |
20 W |
|||
| Maximum sample length |
220 mm |
Automatic filter changer |
12 positions |
|||
| Size/Weight |
1050W x 607D x 463H mm / 210 kg |
X-RAY CAMERA | ||||
| Power & control signals for optional in-situ stages |
yes |
Camera type | 7 Mp active pixel flat-panel | |||
| Integrated micro-positioning stage | yes | Camera field of view | 140 x 120 mm | |||
| Active artefact suppression | yes | Radiation protection | radiation hardened fiber-optics |
