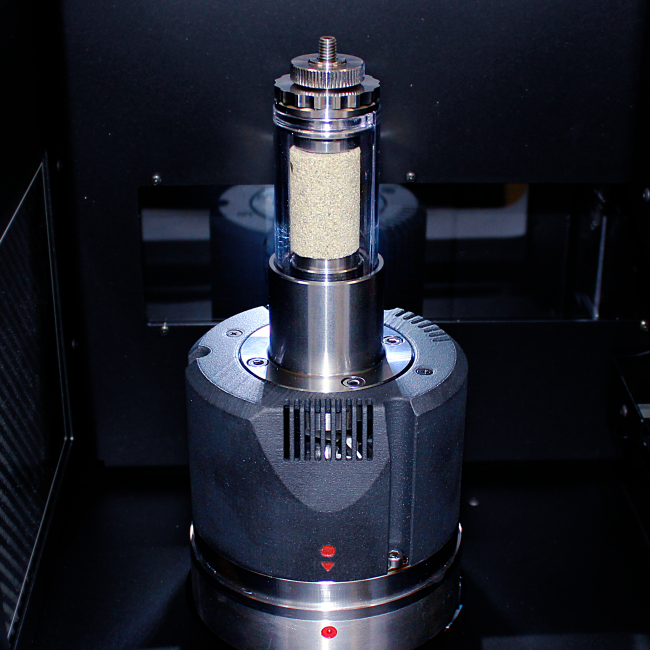

Compression/Tensile Stage
In-situ scanning under high forces
Compression and tensile | A single accessory for scanning during force-controlled experiments | |
+1000N compression, -1000N tension
|
Controlled high loads can be applied with accurate force and displacement measurements | |
Large sample volume
|
Up to 22mm object diameter, up to 33mm start compression length | |
No additional cables required | Connection through slip rings embedded in NeoScan systems |
Technische Daten
Maximum compression/tensile force | >1000 N | |
Maximum travel
|
>10 mm
|
|
Maximum object diameter
|
22 mm
|
|
Load speed
|
0.3...3.3 mm/min | |
Start object length for compression
|
8...33 mm | |
Start object length for tensile | 8...25 mm |
